Mechanical Wire Mesh Making Machine PLC Centralized Control Touch Screen

Brand Name : JG

Model Number : JG-04

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 set

Supply Ability : 50 sets/month

Delivery Time : 15 work days

Packaging Details : nude cargo

Welding wire diameter : 5.0mm-12mm

Rated voltage : AC 380V

Rated power : 140KVA*18

Total dimensions : 24000*6000*2650mm

Price : 10000US$

Contact Now

Mechanical steel mesh machine/PLC centralized control/touch screen

The machine weft diameter and length are used straighten cutter pre-cut,radial line manually placed into the feed mechanism automatically by the hundred from the servo feed trolley automatically,without manual placement,servo automatic car dragnet.Feeder in parallel with manual turntable automatically fall down.The aircraft hydraulic motor power,speed,easy to adjust pressure,the welded portion of the pneumatic pop-up unit,extending electrode life.The machine has a PLC control system uses centralized control,touch screen as an external input portion,all the parameters by touch input.

parameter is introduced

Welding wire diameter	5.0-12mm	Warps form	pre-cut wire
Weft spacing	50mm	Wefts form	pre-cut wire
Warps spacing	100-300mm	Rated voltage	AC380V
Welding width	3500mm	Rated power	140KVA*18
Welding speed	25times/min	Total Dimensions	2400060002650mm
Number of solder joints	36	Mesh length	6000mm

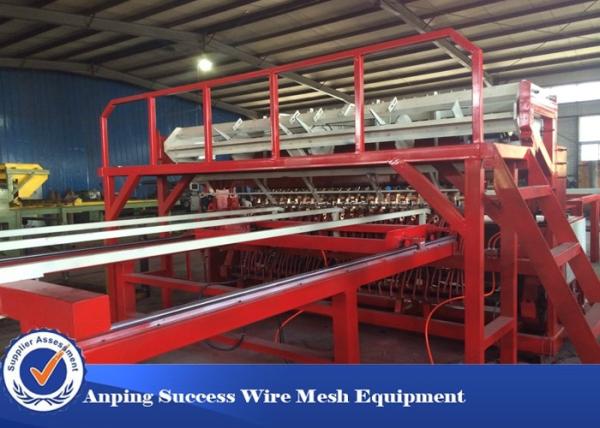

Machine picture
